Compactional Pore Pressure calculated for d-exponent, sonic transit time and resistivity

Fracture pressure calculated utilising over-burden stress, pore pressure and sonic derived poisons ratio

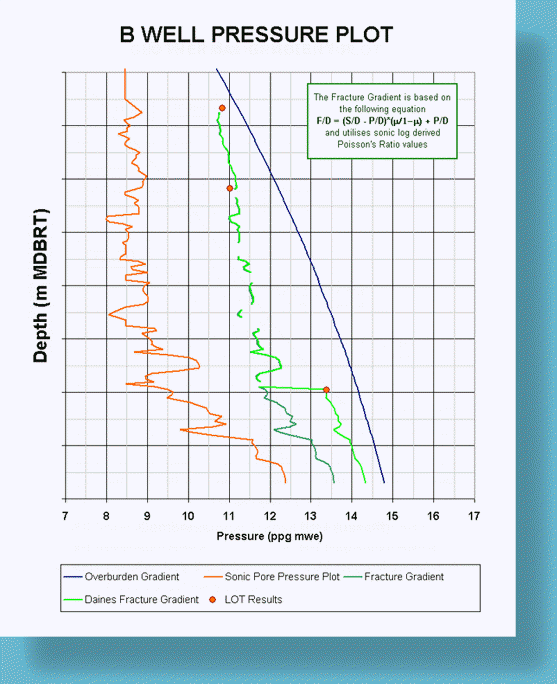

The well pressure plot integrates and presents all the pressure related data acquired from the well

Validity of pore pressure can be assessed in terms of repeatability from one parameter to another

The validity of the calculated fracture pressure can be assessed by comparison with leak-off test results
